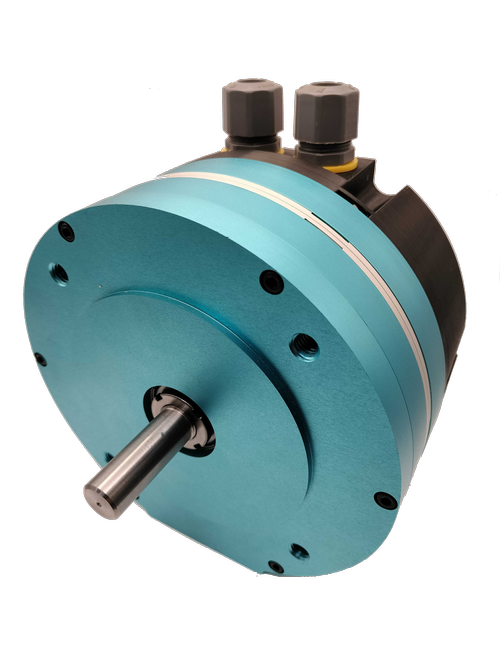

The TruVolt® MultiMotor is an integrated high-performance motor platform that combines a patented axial flux permanent magnet motor, integrated VFD, embedded PLC, industrial communications, and more into a single intelligent package.
One Motor. One Controller. One Intelligent Platform.
Designed for flexible industrial deployment.
Compatible with multiple power architectures.
Available with face mount or foot mount options.
Efficient electrical utilization and performance.
Precise speed and torque control built directly into the motor.
Simple programming and automation directly onboard.
Advanced electromagnetic design and thermal performance.
Under 6kg* for the standard NEMA56 platform.
Designed from the ground up for the next generation of industrial automation and motion systems.
Advanced axial flux architecture provides exceptional power density, smooth operation, and efficient energy conversion.
Eliminates the need for external drive hardware while simplifying installation and reducing cabinet space.
User-accessible PLC functionality allows custom automation and machine control directly inside the motor platform.
Modern communications infrastructure supports connected industrial environments and Industry 4.0 initiatives.
High-performance speed and torque control suitable for demanding motion applications.
Traditional industrial systems require multiple separate components including the motor, drive, PLC, monitoring hardware, communications interfaces, and associated wiring. The TruVolt® MultiMotor combines these systems into a single intelligent platform.
Patented Ironless Axial Flux PMSM technology.
Integrated variable frequency drive and servo electronics.
User programmable automation platform.
Industrial networking and remote access capability.
MotorVision Ready™ predictive maintenance integration.
Constant speed, constant torque, and advanced operating modes.
TruVolt® MultiMotor NEMA56 2HP Platform
| Definition | Data | Notes |
|---|---|---|
| Product Code | MultiMotor-56-2HP+ | 2 HP nominal |
| Rated Voltage (AC) | <360 V | IEC 60034-1 |
| Rated Voltage (DC) | <420 V | - |
| Rated Input Frequency | <400 Hz | - |
| Efficiency Class | > IES2+ | IES is a system metric. Motor alone is >IE4 for most loads |
| Rated Power | 1.0kW / 1HP | - |
| Rated Speed | 3600 RPM | Variable Speed |
| Peak Power | 2HP | <120 sec |
| Sound Pressure Level | <40dBA | - |
| Degree of Protection | IP66 | - |
Why engineers choose axial flux technology.
Advanced stator architecture enables IES2+ performance and >IE4 operation across most loading conditions.
Deliver more torque in a compact footprint compared to conventional motor technologies.
Integrated electronics and axial flux architecture reduce overall system footprint.
Eliminate separate drives, controls, and monitoring hardware.
Designed for demanding industrial applications and continuous operation.
Built to support predictive maintenance, industrial networking, and advanced automation.
Standard products and custom engineered solutions.
Available today and ready for production orders.
Available through custom engineering programs.
Available for larger industrial applications.
Specialized generator solutions available upon request.
Adapted for unique electrical requirements.
Face mount, foot mount, and special mechanical configurations.
Our standard NEMA56 motor is available to order today; however, additional frame sizes and power levels are available upon request.
For larger production programs, we prefer to work directly with our customers to design the motor that is right for their application. Our engineering team works closely with clients to optimize performance, efficiency, mechanical integration, and overall system value.
If you have a custom request or do not see the size you need listed, please reach out and schedule an engineering consultation. We always do our best to accommodate special mechanical requirements, environmental constraints, and unique operating conditions.
Tell us about your application and our engineering team will contact you.
Built on the same core TruVolt® technology foundation.
Advanced motor-generator platforms for stationary and mobile power applications.
Application-specific motor and generator development programs.
The TruVolt® MultiMotor combines advanced axial flux motor technology, integrated drive electronics, embedded controls, and predictive maintenance capability into a single intelligent platform.
